• Top Mount
  • Swing Solid Freezer

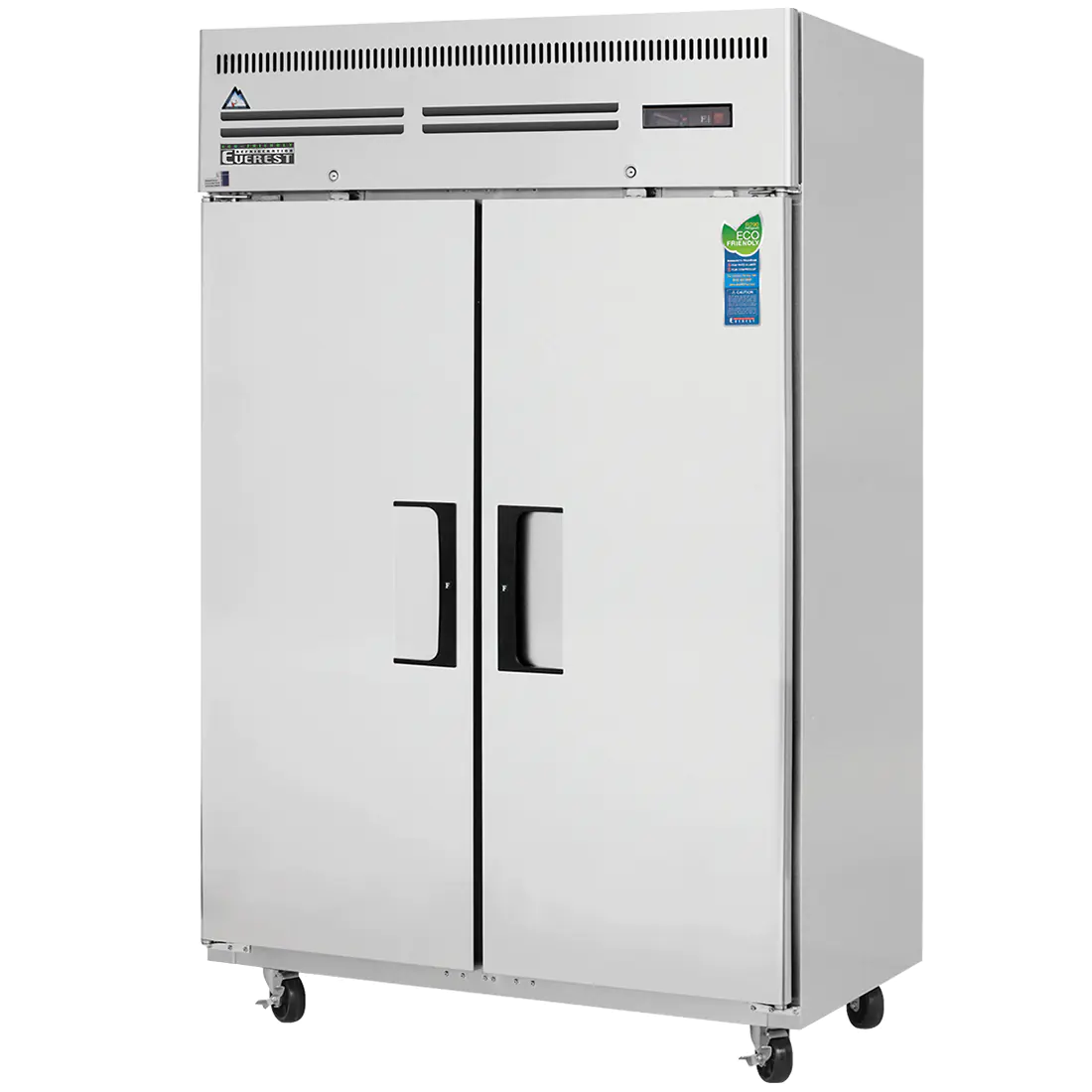

ESF2

Solid Door Freezers

Description

Cabinet Construction
  • Heavy duty stainless steel interior / exterior with rounded corners for a hazard-free workspace.
  • Galvanized steel top, bottom and rear.
  • 5" thick high density polyurethane insulation.
  • Four 5" swivel casters with locks on front set. Leg stabilizers standard for models ESF1, ESFH2 and ESF3.
Refrigeration System
  • Top mounted, self-contained and fully detachable condensing unit uses environmentally friendly R404A* refrigerant with zero (0) Ozone Depletion Potential (ODP) and EPA compliant R290 refrigerant with zero (0) Ozone Depletion Potential (ODP) and three (3) Global Warming Potential (GWP). R290 condensing units are replaceable and require no on-site brazing. *Ask about alternative refrigerant.
  • PSC evaporator fan motors for R404A models. Electronically commutated (ECM) fan motors for R290 models.
  • Airflow guard ensures optimal circulation of cold air. R290 models include full-length air duct system.
  • Time-initiated and temperature-terminated auto defrost heater.
  • Large capacity, corrosion-resistant condenser and evaporator coils.
  • Self-maintaining, energy-efficient condensate drain pan requires no external drains or electric heaters.
  • High performance condenser fan motors ensure efficient compressor ventilation. R290 models use auto-reverse condenser fan motors which also support condenser coil cleaning. Refer to owner?s manual for full maintenance instructions.
  • Pressure relief devices allow smooth access to cabinet interior when re-opening doors.
  • Pre-wired and ready to plug, 115V/60Hz/1Ph, (NEMA 5-15P for models ESF1 and ESFH2), (NEMA 5-20P for models ESF2, ESWF2 and ESF3).
Lighting
  • Energy efficient silicone coated and shatter-proof LED lighting provides bright, high color illumination with low heat output.
Doors
  • Heavy duty stainless steel interior / exterior.
  • 5" thick high density polyurethane insulation.
  • Frame heaters prevent exterior moisture build up.
  • Self-closing with adjustable torsion system for a positive seal.
  • Snap-in magnetic door gasket make cleaning and replacement an easy process.
  • High strength, recessed door handles.
  • Pre-installed door locks keep your items safe from theft.
  • Field reversible.
Shelving
  • Three epoxy coated, steel wire shelves per section.
  • Height adjustable stainless steel clips.
Temperature Control
  • Multi-function digital controller with easy to read LED display.
  • Factory preset temperature, -4?F. Temperature setting range from -10?F to 54?F.
  • R290 models include audible overheat protection alarm for compressor and condenser coil.
Options
  • Additional shelving.
  • 3? swivel casters with locks.
  • 5? ? 6? height-adjustable and interchangeable legs.
  • Left hinged door.

  • WARNING: This product can expose you to chemicals including Bisphenol A(BPA), Di (2-ethylhexyl) phthalate(DEHP) and Cobalt sulfate heptahydrate, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to?www.P65Warnings.ca.gov.

Product Specification

Temperature Freezer
Door Count 2
Door Style Swing Solid
Drawers N/A
Shelves 6
Cu. Ft. Capacity 48
Exterior Length (in.) 49 5/8
Exterior Depth (in.) 31 5/8
Exterior Height (in.) 74 1/4
Power (V-Hz-Ph) 115-60-1
Amps 14.81
Compressor HP 1/2 x 2
Crated Weight (lbs.) 468
Top Pans N/A
Barrels N/A
