• Side Mount
  • Swing Solid & Glass Combo Refrigerator

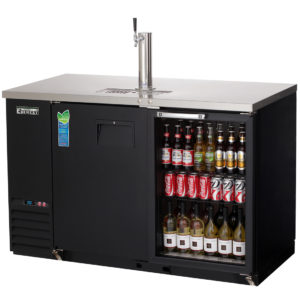

EBD2-BBG

Back Bar & Direct Draw Keg Refrigerators

Description

Cabinet Construction
  • Heavy duty stainless steel countertop with textured laminate, black vinyl exterior.
  • Galvanized steel interior walls and high quality stainless steel floor.
  • 1 3/4" thick high density polyurethane insulation.
  • Built-in caster thread receptacles for all models.
Refrigeration System
  • Side mounted, self-contained and fully detachable Blizzard R290 condensing unit uses environmentally friendly, EPA-compliant R290 refrigerant with zero (0) Ozone Depletion Potential (ODP) and three (3) Global Warming Potential (GWP). Blizzard R290 is easily replaceable and requires no on-site brazing.
  • Electronically commutated (ECM) fan motors achieve rapid cooling with less energy consumption.
  • Full-length air duct system ensures optimal circulation of cold air.
  • Time-initiated and temperature-terminated auto defrost cycle for seamless operation.
  • Large capacity, corrosion-resistant condenser and evaporator coils.
  • Self-maintaining, energy-efficient condensate drain pan requires no external drains or electric heaters.
  • High performance, auto-reverse condenser fan motor supports compressor ventilation and condenser coil cleaning. Refer to owner?s manual for full maintenance instructions.
  • Pre-wired and ready to plug, 115V/60Hz/1Ph, NEMA 5-15P.
Lighting
  • Shielded LED bar lighting with on/off switch provides bright, high color illumination at lower heat output.
Doors
  • Textured laminate, black vinyl exterior with galvanized steel interior and 1 ?? thick high density polyurethane insulation for solid doors. Black PVC frames with low emissivity double glass panes for glass doors.
  • Snap-in magnetic door gasket make cleaning and replacement an easy process.
  • High strength, recessed door handles for solid doors. High strength, die-cast door handles for glass doors.
  • Pre-installed door locks keep your items safe from theft.
Draft Arms
  • NSF certified, 3? diameter insulated stainless steel draft arm with single faucet and matching air distributor.
Shelving
  • Two epoxy coated, steel wire shelves.
  • Height adjustable stainless steel clips.
Temperature Control
  • Multi-function digital controller with easy to read LED display.
  • Factory preset temperature, 35?F. Temperature setting range from 33?F to 54?F.
  • Audible overheat protection alarm for compressor and condenser coil.
Options
  • Dual faucet draft arms and matching air distributors.
  • Additional shelving.
  • 3? or 5? swivel casters with locks.
  • 3.5? ? 6? height-adjustable and interchangeable legs.

  • WARNING: This product can expose you to chemicals including Bisphenol A(BPA), Di (2-ethylhexyl) phthalate(DEHP) and Cobalt sulfate heptahydrate, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to?www.P65Warnings.ca.gov.

Product Specification

Temperature Refrigerator
Door Count 1 (SD), 1 (GD)
Door Style Swing Solid & Glass Combo
Drawers N/A
Shelves 2
Cu. Ft. Capacity 20
Exterior Length (in.) 57 3/4
Exterior Depth (in.) 27
Exterior Height (in.) 37 1/4
Power (V-Hz-Ph) 115-60-1
Amps 3.5
Compressor HP 1/4+
Crated Weight (lbs.) 304
Top Pans N/A
Barrels 1
