- Side Mount
- Swing Glass Refrigerator

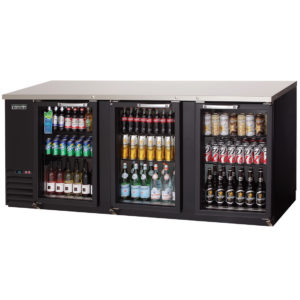

EBB90G-24
24″ Deep Glass Door Back Bar Coolers
Description
Cabinet Construction
- Heavy duty stainless steel countertop with textured laminate, black vinyl exterior.
- Galvanized steel interior walls and high quality stainless steel floor.
- 1 3/4" thick high density polyurethane insulation.
- Four pre-installed 5" swivel casters with locks on front set (applies only to model EBB23G).
- Built-in caster thread receptacles for all models.
- Side mounted, self-contained and fully detachable Blizzard R290 condensing unit uses environmentally friendly, EPA-compliant R290 refrigerant with zero (0) Ozone Depletion Potential (ODP) and three (3) Global Warming Potential (GWP). Blizzard R290 is easily replaceable and requires no on-site brazing (Blizzard R290 condensing unit is back mounted for model EBB23G).
- Electronically commutated (ECM) fan motors achieve rapid cooling with less energy consumption.
- Full-length air duct system ensures optimal circulation of cold air.
- Time-initiated and temperature-terminated auto defrost cycle for seamless operation.
- Large capacity, corrosion-resistant condenser and evaporator coils.
- Self-maintaining, energy-efficient condensate drain pan requires no external drains or electric heaters.
- High performance, auto-reverse condenser fan motor supports compressor ventilation and condenser coil cleaning. Refer to owner?s manual for full maintenance instructions.
- Pre-wired and ready to plug, 115V/60Hz/1Ph, NEMA 5-15P.
- Shielded LED bar lighting with on/off switch provides bright, high color illumination at lower heat output.
- Low emissivity double glass panes reflect UV rays for efficient cooling.
- Black PVC door frames.
- Snap-in magnetic door gasket make cleaning and replacement an easy process.
- High strength, die-cast door handles.
- Pre-installed door locks keep your items safe from theft.
- Two epoxy coated, steel wire shelves per section.
- Height adjustable stainless steel clips.
- Multi-function digital controller with easy to read LED display.
- Factory preset temperature, 35?F. Temperature setting range from 33?F to 54?F.
- Audible overheat protection alarm for compressor and condenser coil.
- Additional shelving.
- 3? or 5? swivel casters with locks.
- 5? ? 6? height-adjustable and interchangeable legs.
- WARNING: This product can expose you to chemicals including Bisphenol A(BPA), Di (2-ethylhexyl) phthalate(DEHP) and Cobalt sulfate heptahydrate, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to?www.P65Warnings.ca.gov.
Product Specification
| Temperature | Refrigerator |
| Door Count | 3 |
| Door Style | Swing Glass |
| Drawers | N/A |
| Shelves | 6 |
| Cu. Ft. Capacity | 28 |
| Exterior Length (in.) | 89 1/4 |
| Exterior Depth (in.) | 24 1/2 |
| Exterior Height (in.) | 37 1/4 |
| Power (V-Hz-Ph) | 115-60-1 |
| Amps | 2.5 |
| Compressor HP | 1/3 |
| Crated Weight (lbs.) | 446 |
| Top Pans | N/A |
| Barrels | N/A |
