• Side Mount
  • Swing Glass Refrigerator

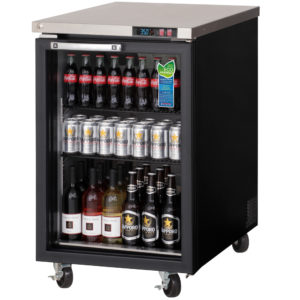

EBB23G

Glass Door Back Bar Coolers

Description

Cabinet Construction
  • Heavy duty stainless steel countertop with textured laminate, black vinyl exterior.
  • Galvanized steel interior walls and high quality stainless steel floor.
  • 1 3/4" thick high density polyurethane insulation.
  • Four pre-installed 5" swivel casters with locks on front set (applies only to model EBB23G).
  • Built-in caster thread receptacles for all models.
Refrigeration System
  • Side mounted, self-contained and fully detachable Blizzard R290 condensing unit uses environmentally friendly, EPA-compliant R290 refrigerant with zero (0) Ozone Depletion Potential (ODP) and three (3) Global Warming Potential (GWP). Blizzard R290 is easily replaceable and requires no on-site brazing (Blizzard R290 condensing unit is back mounted for model EBB23G).
  • Electronically commutated (ECM) fan motors achieve rapid cooling with less energy consumption.
  • Full-length air duct system ensures optimal circulation of cold air.
  • Time-initiated and temperature-terminated auto defrost cycle for seamless operation.
  • Large capacity, corrosion-resistant condenser and evaporator coils.
  • Self-maintaining, energy-efficient condensate drain pan requires no external drains or electric heaters.
  • High performance, auto-reverse condenser fan motor supports compressor ventilation and condenser coil cleaning. Refer to owner?s manual for full maintenance instructions.
  • Pre-wired and ready to plug, 115V/60Hz/1Ph, NEMA 5-15P.
Lighting
  • Shielded LED bar lighting with on/off switch provides bright, high color illumination at lower heat output.
Doors
  • Low emissivity double glass panes reflect UV rays for efficient cooling.
  • Black PVC door frames.
  • Snap-in magnetic door gasket make cleaning and replacement an easy process.
  • High strength, die-cast door handles.
  • Pre-installed door locks keep your items safe from theft.
Shelving
  • Two epoxy coated, steel wire shelves per section.
  • Height adjustable stainless steel clips.
Temperature Control
  • Multi-function digital controller with easy to read LED display.
  • Factory preset temperature, 35?F. Temperature setting range from 33?F to 54?F.
  • Audible overheat protection alarm for compressor and condenser coil.
Options
  • Additional shelving.
  • 3? or 5? swivel casters with locks.
  • 5? ? 6? height-adjustable and interchangeable legs.

  • WARNING: This product can expose you to chemicals including Bisphenol A(BPA), Di (2-ethylhexyl) phthalate(DEHP) and Cobalt sulfate heptahydrate, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to?www.P65Warnings.ca.gov.

Product Specification

Temperature Refrigerator
Door Count 1
Door Style Swing Glass
Drawers N/A
Shelves 2
Cu. Ft. Capacity 8
Exterior Length (in.) 23 1/2
Exterior Depth (in.) 32
Exterior Height (in.) 39 3/8
Power (V-Hz-Ph) 115-60-1
Amps 2.5
Compressor HP 1/5
Crated Weight (lbs.) 179
Top Pans N/A
Barrels N/A
